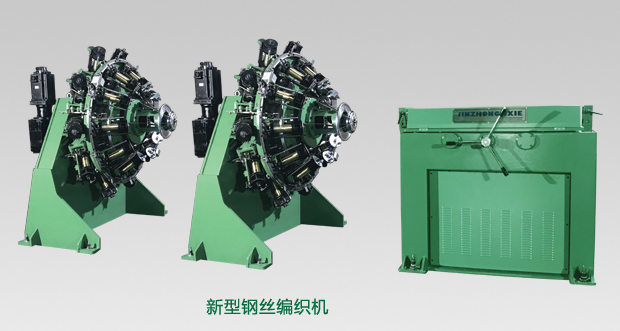

ZGB Series CNC High-Speed ​​Linear Wire Braiding Machine

Overview: This machine is a new type of wire braiding machine developed and manufactured by our company. It adopts a controlled rotation principle, with the spindle moving in a circular linear motion along a circular track. It breaks through the traditional figure-eight braiding principle used in wire braiding both domestically and internationally. This machine is a new type of wire braiding machine with high technical and professional content.

ZGB Series CNC High-Speed ​​Linear Steel Wire Braiding Machine Structure and Features:

1. This machine adopts a controlled rotary principle with spindle circumferential linear motion, ensuring stable wire tension and improving the quality of woven products.

2. The shaping drive mechanism design makes braiding more accurate, improving braiding precision and significantly enhancing braiding quality.

3. The spindle circumferential linear motion design increases spindle speed, significantly improving production efficiency.

4. Extra-large wire capacity saves steel wire waste, reduces wire change frequency, improves work efficiency, and reduces production costs.

5. Fully enclosed noise-reducing structure ensures operator safety and optimizes the working environment.

6. Fully automatic digital control improves mechanical precision, reduces operator skill requirements, and allows one person to operate multiple machines.

7. Door-controlled start/stop alarm function.

8. Automatic stop function for wire breakage.

9. Human-machine interface parameter settings.

10. Fixed-length braiding function.

11. Fault indication function.

12. Three-color alarm indication.

Main Technical Parameters:
