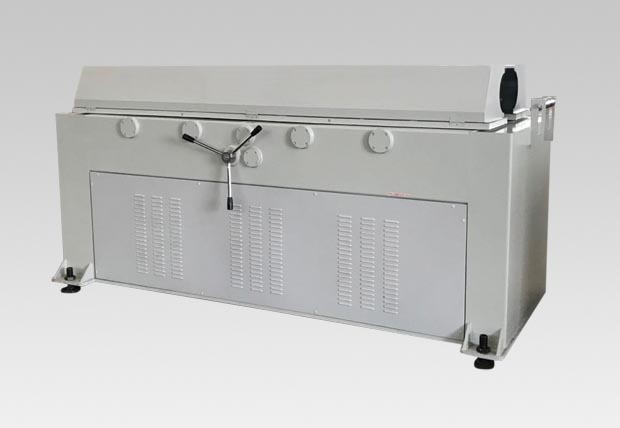

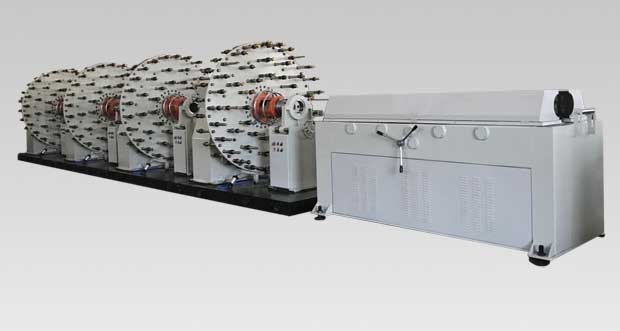

Overview Of SCR rubber hose wire winding machine：

SCR series high-speed steel wire winding machine is a new product developed by our company by adopting the characteristics of several foreign winding machines. At present, the following specifications are on sale: SCR120-4S, SCR180-4S, SCR200-4S, SCR180-220-4S and SCR210-270-4S. From the technical point of view, this series of high-speed steel wire winding machines adopt steel wire twining type, spindle constant tension pay-off, pre-forming on the machine, and combined with wire splitting device for steel wire winding.

Highlights Of SCR rubber hose wire winding machine：

1. The SCR series wire winding machine is equipped with a large-capacity rolling spool and tension compensator (our product) designed by our company. This allows for individual tension control of each wire and pre-adjustment under the machine to ensure consistent tension for each wire after unwinding. It solves the tension difference between large and small spools, overcomes centrifugal force during winding, improves winding quality, reduces wire waste, and increases work efficiency by over 50%. The design of individual stroke control for each spool ensures that each layer of wire meets the winding technical requirements.

2. The traction machine adopts a horizontal soft-pressure traction and a multi-gear design with hardened gears, offering advantages such as high traction force, stable traction speed, and durability.

Parameters Of SCR rubber hose wire winding machine：
